EG4 WallMount Battery UL 9540A UL 1973 with 14.3 kWh for outdoor use, EMP-hardened; Cabin Depot exclusive.

EG4 WallMount All Weather Battery UL 9540A | UL 1973

by EG4 Electronics

Save 17% Save 17%
$4,823.47
$4,823.47 - $4,823.47
$4,823.47
$3,999.00
$3,999.00 - $3,999.00
$3,999.00
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Have Questions?

We have Answers!! Click Here!

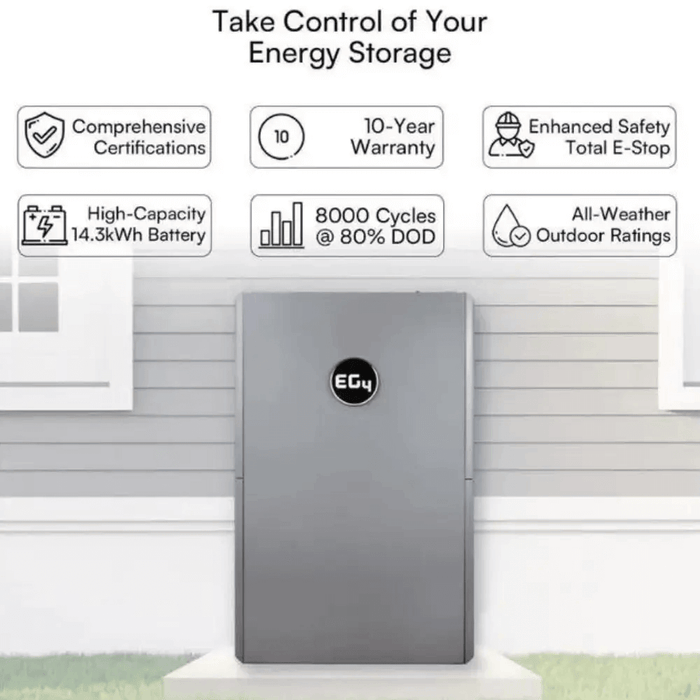

Introducing the EG4® WallMount All Weather Battery



EG4’s WallMount All Weather battery features 14.3 kWh storage capacity and delivers 200A max continuous discharge. The battery’s integrated self-heating feature makes it optimal for outdoor applications and it’s backed 10-year warranty. This battery is certified electromagnetic pulse (EMP)-hardened, so it is capable of withstanding disruptions caused by natural and manmade EMPs.

The EG4 WallMount Battery, equipped with a 200A BMS, supports over 8000 cycles at 80% depth of discharge (DOD), providing up to 82.6MWh of lifetime production. This battery is designed to pair with EG4 inverters like the 18kPV, 12kPV, and 6000XP.

Weather-tight quick connects ensure secure and reliable connections, while 600A internal busbars and multiple terminals eliminate the need for external busbars. E-Stop offers a single-button emergency shutdown for all batteries and inverters equipped with RSD capabilities. Additionally, dual fire arrestors provide thermal runaway protection. The on-board LCD touchscreen simplifies BMS monitoring and supports closed-loop communication with EG4 and other select inverters.

FEATURES

Reliable Power:

  • 10kW delivery, with peak power 10.5kW (10 sec.) and 15.4kW (3 sec.)
  • Constant discharge current – 200A
  • Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production
  • Smart and intelligent BMS for reliability, efficiency and safety
  • Integrated self-heating features when needed in low temperature

All-Weather Design:

  • Built to withstand various weather conditions, making it perfect for outdoor applications

PowerPro ESS:

  • Optional conduit box add-on makes installation with an EG4 18kPV simple
  • No thermal monitoring or ventilation needed

Certifications:

  • UL 9540A | UL 1973
  • UL 9540 with 18kPV
  • Outdoor Rating IP65

Technical Specifications:

  • Voltage: 51.2V
  • Capacity: 280Ah
  • Dimensions: 34.6 × 22.3 × 9.1 in. (88 × 56.6 × 23.2cm)
  • Weight: 308.6 lbs. (140 kg)
  • Design Life: 8000 Deep Cycles
  • Certs: UL 1973
  • Lifetime Production: 82.6MWh

Downloads:

EG4 WallMount All Weather Battery UL 9540A | UL 1973

WallMount All Weather Battery UL 9540A | UL 1973
