Introducing the EG4® 12K Hybrid Solar AC/DC Mini-Split Air Conditioner:
The EG4 Solar AC/DC Mini-Split is an extraordinary addition to the world of ductless heat pump/air conditioners. Designed with energy efficiency and user convenience in mind, this system offers you the freedom to reduce your electric bills and maintain the perfect indoor temperature.
Product Includes:
- INDOOR HEAD UNIT

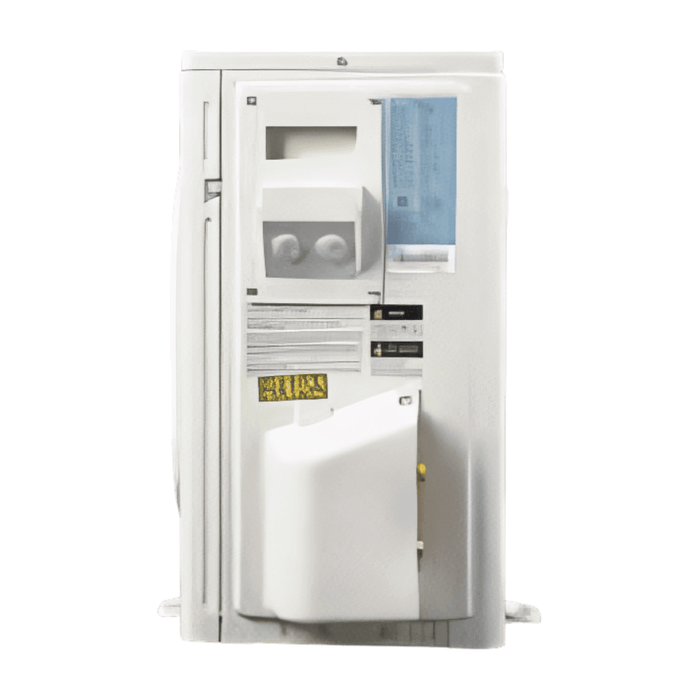

- OUTDOOR UNIT
- PRE-VACUUMED LINESET & ELECTRICAL WIRE – 16.4FT
- LCD REMOTE CONTROL
- INSTALLATION ACCESSORIES
FEATURES:
-
ENHANCED ENERGY EFFICIENCY: Mini-splits have driven HVAC technology advancement, resulting in highly efficient options that excel in every aspect of operation for those prioritizing efficiency and sustainability.
-
ENERGY STAR CERTIFICATION: Opt for the EG4 Mini-Split with Energy Star certification for superior energy efficiency, reduced environmental impact, and potential cost savings, making it an eco-friendly choice with long-term benefits.
-
ELIMINATION OF DUCTWORK HASSLES: Say goodbye to duct-related concerns with ductless, wall-mounted air conditioners—mini-splits—eliminating hassles associated with ducts and ensuring a streamlined experience.
-
USER-FRIENDLY INSTALLATION: DIY-friendly installation with the EG4 Mini-Split is made easy through Plug-N-Cool technology, allowing a hassle-free connection without special tools or vacuum pulling, making it convenient for DIY enthusiasts.
-
SOLAR AIRCON APP: Elevate your EG4 Mini-Split experience with the Solar AirCon app, providing remote control, energy insights, and real-time data for informed decisions, empowering you to achieve ultimate power savings.
-
OPERATING TEMPERATURE RANGE: The EG4 Mini-Split is designed to operate efficiently across a wide temperature range, from -10°C to 58°C (14℉ to 136.4℉). Additionally, it can operate in both Fahrenheit and Celsius, giving you flexibility in temperature measurement.
-
COOLING/HEATING CAPACITY: The EG4 Mini-Split
solar Air conditioner is capable of cooling and heating a specific square footage, making it suitable for a variety of room sizes and property types. Heat & Cool up to 650 Square Feet.
-
SOLAR INTEGRATION: Seamlessly connect to solar panels with the EG4 Mini-Split, significantly reducing or eliminating daytime power consumption. The built-in solar MPPT ensures an extra level of energy efficiency, prioritizing solar power for autonomous operation during power outages.
TECHNICAL SPECIFICATIONS:
-
TYPE: Hybrid - AC/DC Driven
-
RATED BTU: 1 TON / 12000
-
COVERAGE: 650 SQUARE FEET
-
SEER2 RATING: 22
-
CAPACITIES: 3,000-13,000 BTU/h
-
INDOOR UNIT SOUND: (TURBO/5/4/3/2/1 BLOCK) 37/36/35/34/33/32 dB(A)
-
OUTDOOR UNIT SOUND: (HI/MED/LO) 52 dB(A)
-
HSPF2: 10.5
-
COP: 11.9 Btu/W
-
RECOMMENDED SOLAR INPUT: 1000-1600W (90VDC-380VDC)
-
OPERATING TEMPERATURE: (-10℃ to 58 ℃)
-
OPERATION TEMPERATURE INDOOR (COOLING/HEATING): 61-90/32-90 °F
-
OPERATION TEMPERATURE OUTDOOR (COOLING/HEATING): 32-131/5-86 °F
-
WEIGHT: 49.9 kg / 110.22 lbs
-
SOLAR AIRCON APP: YES
-
ENERGY STAR®: YES
-
WARRANTY: 5 YEARS LIMITED WARRANTY
DOWNLOADS:
12,000 BTU Hybrid AC/DC Mini Split DIY
