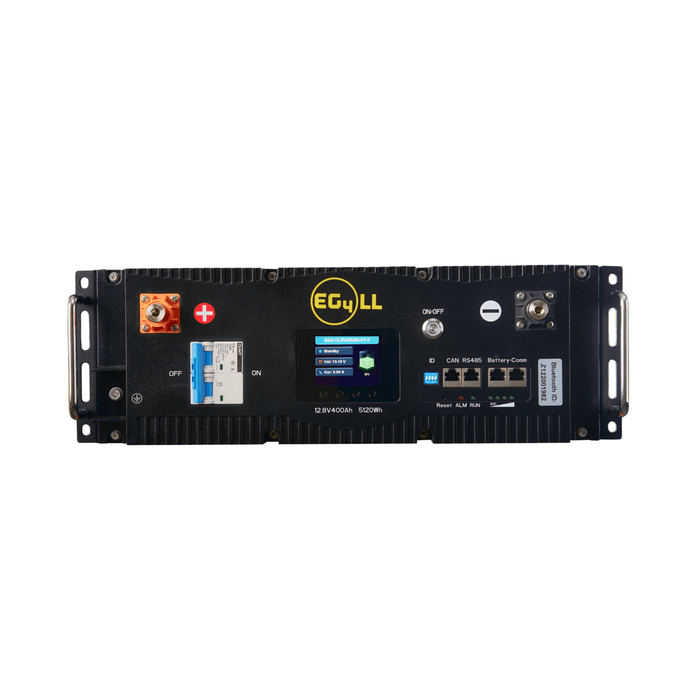

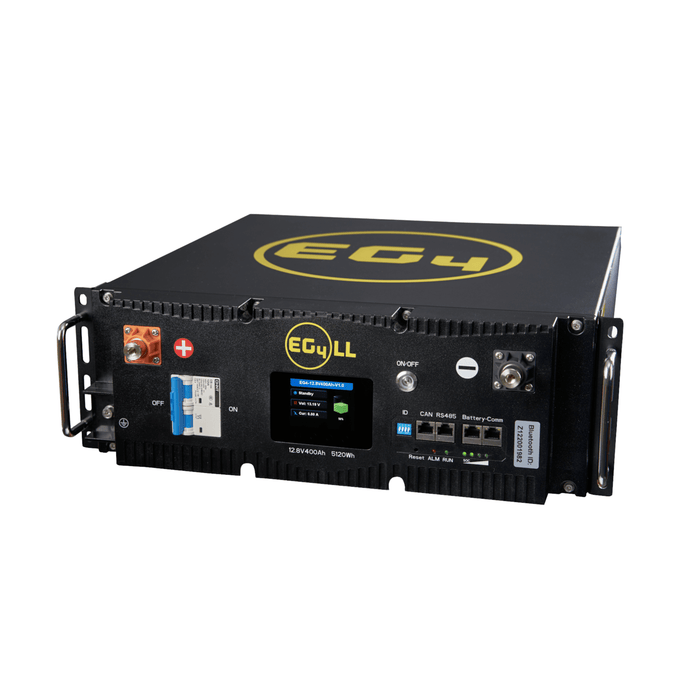

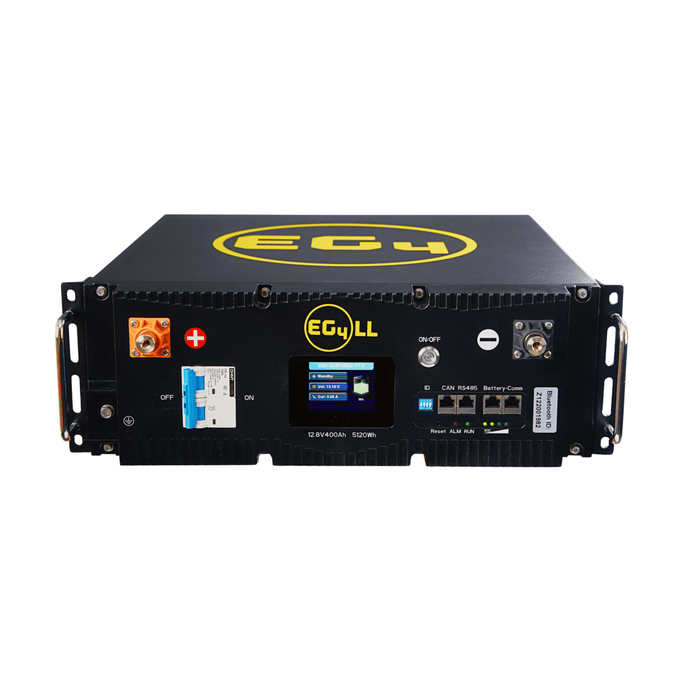

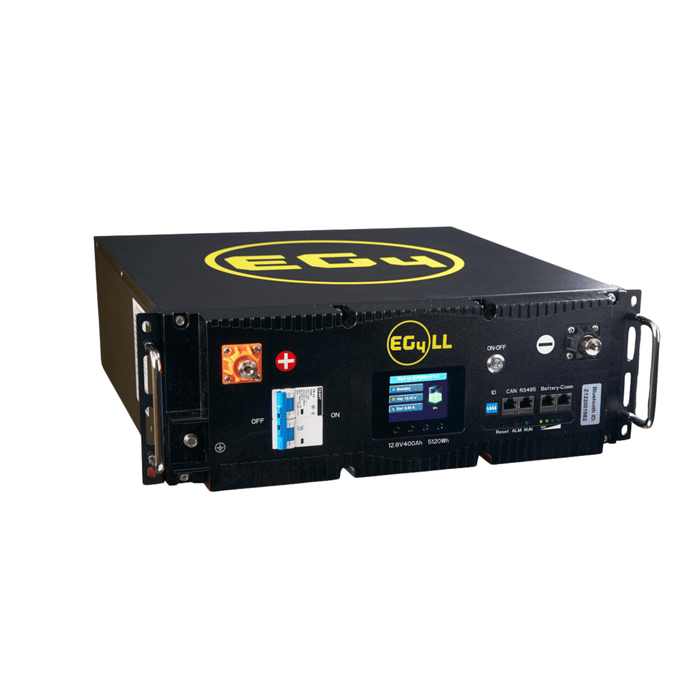

The EG4 LL (Lifetime Lithium) Lithium Iron Phosphate battery is now available at 12.8V (12V) and features a 5.12kWh capacity and 200A internal BMS, while preserving the esteemed features of its predecessor the EG4 LL Battery.
Comprising of 16 UL listed prismatic 3.2V cells and meticulously tested through 7,000 deep discharge cycles to 80% Depth of Discharge (DoD), this battery ensures reliable performance. Capable of daily full charge and discharge for over 15 years without fail, it has undergone rigorous testing and boasts a remarkable 99% operating efficiency.
Equipped with an LCD screen for convenient access to vital battery information, the upgraded model now supports selectable closed-loop inverter communications, including Victron and EG4. Featuring a user-friendly plug-and-play interface, it includes all essential components for hassle-free setup.
Each battery comes with a 1-foot RS485 communication cable and a set of parallel cables. For every six batteries, we provide one RS485 USB battery comm cable, which will be shipped separately.
SPECIFICATIONS
Voltage: 12.8V
Capacity: 400Ah
Dimensions: 6.1 in×19 in×20.2 in (15.5 cm×48.2 cm×51.3 cm)
Weight: 98.1 lbs. (44.5 kg)
Design Life: 7000 Deep Cycles
FEATURES
Tier one A+ cell composition
99% efficiency LiFePO4 16-cell pack
Max energy density
Flexible racking options
Environmentally friendly and lead-free
Stress-free battery bank expansion capacity
Reliable built-in BMS, voltage, current, temperature, and health management
Longer lasting 10 to 20-year design life
Upgraded EG4-LL (Lifetime Lithium)Lithium Iron Phosphate battery 12.8V (12V) 5.12kWh with 200A internal BMS, based on the same subset features of the previous industry renowned EG4-LL Battery.
Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Includes an LCD screen to quickly view your batteries' most important information, but now features Selectable closed-loop inverter communications including Victron, and EG4! A simple plug-and-play interface that has all the essentials built in for easy setup.
Included: (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery (1) RS485 USB Battery Comm Cable PER (6) BATTERIES (shipped separately)
EG4 Lifetime Lithium, Best In Class Solar Rack Battery
Rated for 7000 deep charge & discharge cycles
15-year life with 80% depth of discharge daily, designed for up to 20-year life
