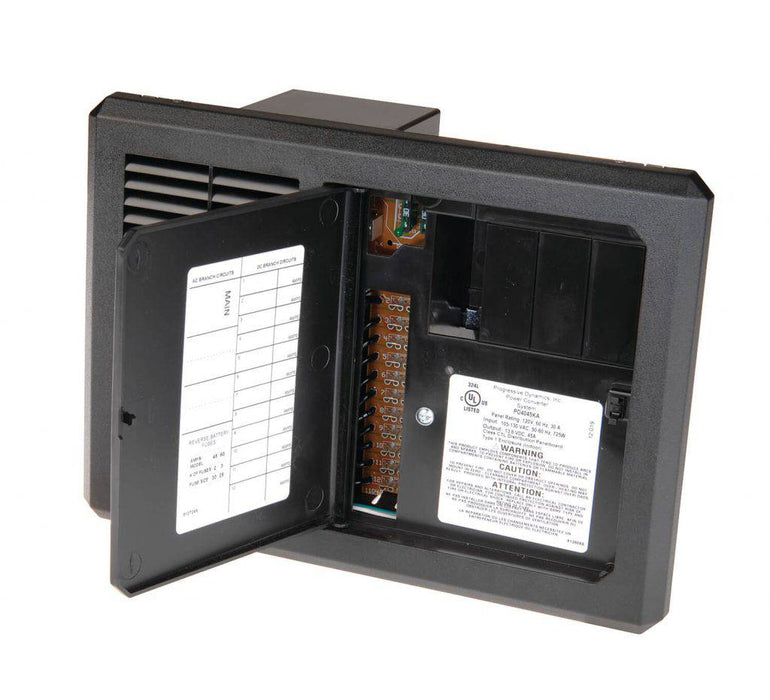

“Mighty Mini” The Compact All-In-One System…AC/DC Distribution Panel and Inteli-Power Converter with built-in Charge Wizard®

Industry’s smallest all-in-one 45 or 60 Amp distribution panel/converter system. Available with our exclusive built-in Inteli-Power Converter…”The most reliable converter in the RV industry”. The converter section is easily accessible from the front. The AC Distribution Panel is rated for 120 VAC @ 30 Amps with up to 7 branch circuits. The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections. Reverse battery blown fuse indicator.

Inteli-Power 4000 Mighty Mini models can recharge the battery to 90% in 3-6 hours using our patented Charge Wizard technology:

  • BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts – Safely completes the charge.
  • STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
    & sulfation – the leading cause of battery failure.

PD4000 Series Features

  • Compact & lightweight.
  • Reverse battery protection with easy to replace fuses.
  • Electronic current limiting.
  • High and low AC input protection.
  • Intelligent, variable speed, cooling fan.
  • Automatic thermal protection.
  • Front access to large wiring compartment.
  • Snap-lock cover stays shut while traveling – opens with a touch.
  • Attractive lightweight panel design made from black impact-resistant high temperature polymers.
  • Covered by one or more of the following U.S. Patents: 7,782,002 and RE39,461.

Inteli-Power AC Features

  • AC Distribution Panel rated for 120 VAC @ 30 AMPS.
  • Accepts up to 7 branch circuit breakers.
  • AC Panel features built-in push and lock strain relief wiring connectors for quick installation.
  • Saves over 50% on installation cost.

Inteli-Power DC Features

  • Converter/Charger section is accessible from the front.
  • The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections.
  • Reverse Polarity LED, an industry first, indicates blown fuses, a leading cause of perceived converter failure.
  • No more guessing. Replace the fuses and the converter is immediately operational.
  • The 45 AMP Mighty Mini has twelve DC fuse positions.
  • The Inteli-Power™ 4000 Series Mighty Mini is pre-wired for easy installation.

PD4000 Mighty Mini Inteli-Power Panel Specifications

  PD4045 PD4060
Maximum DC Output Current 45-AMPS 60-AMPS
Maximum Continuous Input Power 725 WATTS 1000 WATTS
No Load DC Output Voltage 13.6 VDC 13.6 VDC
No Load Voltage Tolerance +/- .3 VDC +/- .3 VDC
Full Load Output Voltage > 12.6 VDC > 12.6 VDC
Ripple and Noise Voltage < 50 MV RMS < 50 MV RMS
Input Voltage Tolerance 105 - 130 VAC 105 - 130 VAC
Input Voltage Frequency 50-60 HZ 50-60 HZ
Peak Inrush Current 32-AMPS 47-AMPS
Input Current at Rated Power ˜8.3-AMPS ˜11.4-AMPS
Efficiency (Typical) > 80% > 80%
Reverse Battery Protection YES YES
Electronic Current Limiting YES YES
Cooling Fan Auto-variable speed Auto-variable speed
Back Up Thermal Protection YES YES
Charge Wizard YES YES
Storage Temperature -20-80C -20-80C
Operating Temperature 0-50C 0-50C
Hipot Voltage Test <-------- 1240 V @ INPUT TERMINALS -------->
Over Voltage Protection YES YES
Under Voltage Protection YES YES
Weight 5.7 LBS. 6.7 LBS.
Cutout Size 10.75W x 7.25H 10.75W x 7.25H
Dimensions 12.28W x 8.875H x 7.25D 12.28W x 8.875H x 7.25D
YES YES
AC Distribution Specs:
Rating 120 VAC/30 AMPS 120 VAC/30 AMPS
Breakers Max. 30 AMP Main... Up to 7 Branch Circuits
DC Distribution Specs:
DC Fuse Positions 2 @ 30 AMP max. each

10 @ 20 AMP max. each		 2 @ 30 AMP max. each

10 @ 20 AMP max. each
Reverse Polarity LED YES YES
