RUiXU RX9MP 5 x 5/16" Busbar (Pair)
RUiXU RX9MP 5 x 5/16" Busbar (Pair)
Couldn't load pickup availability
Heavy-Duty 800A Busbars with Quick-Connect.

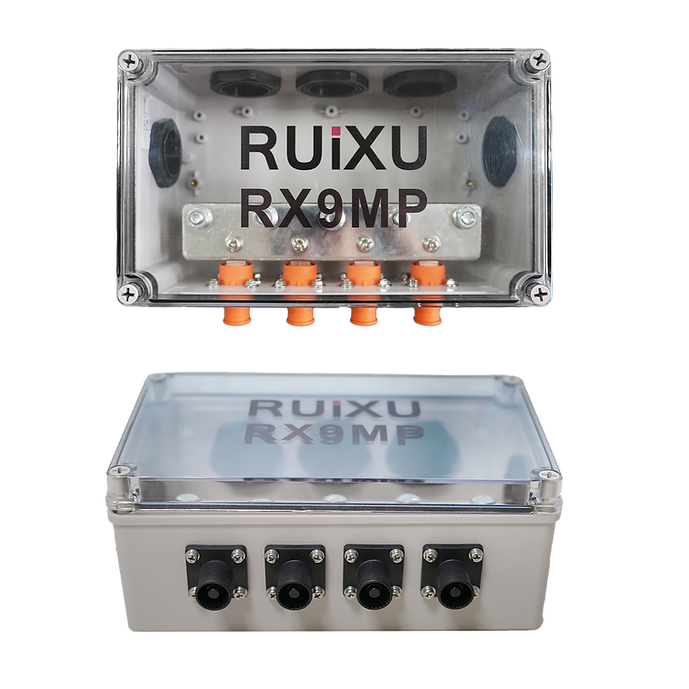

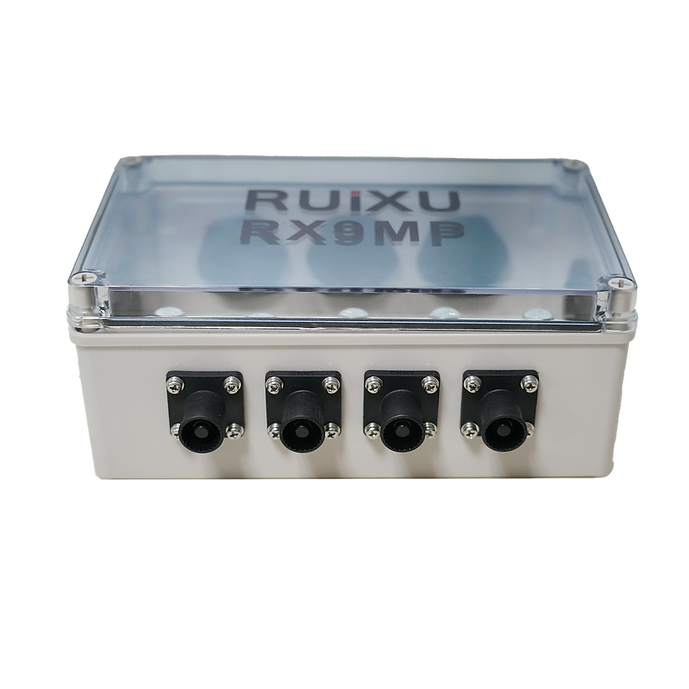

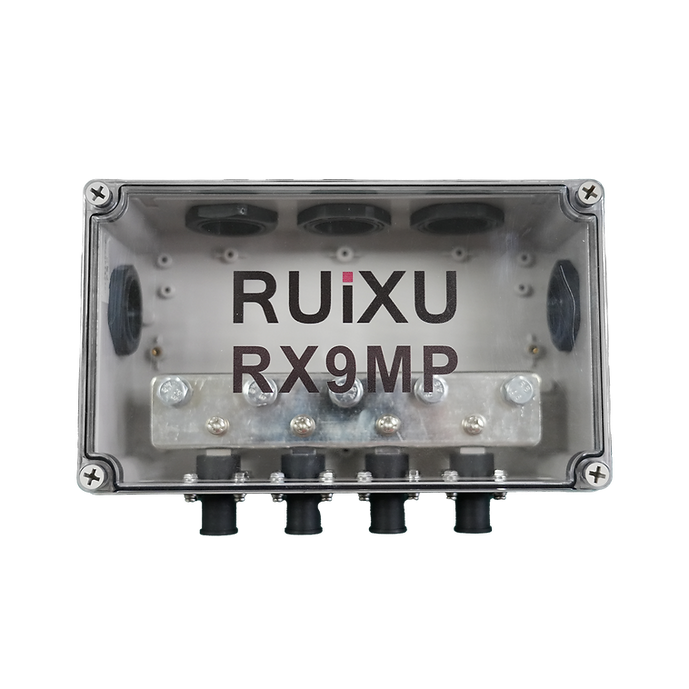

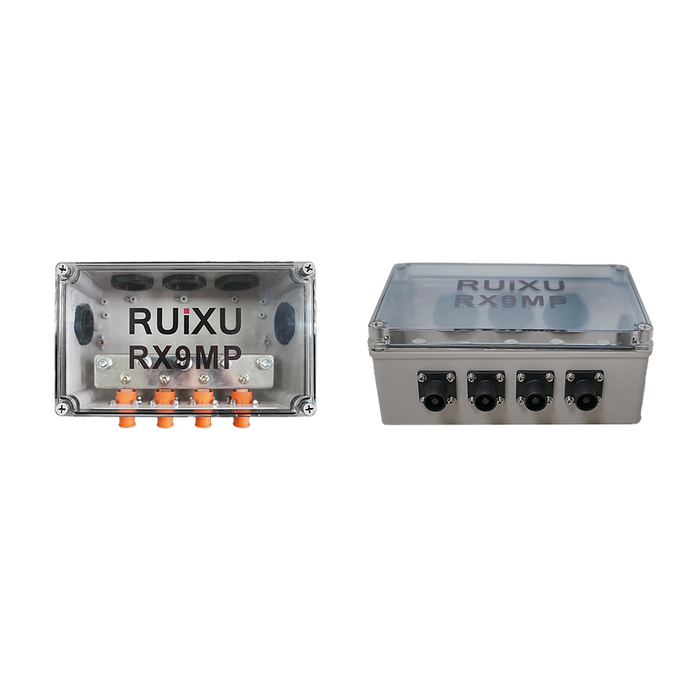

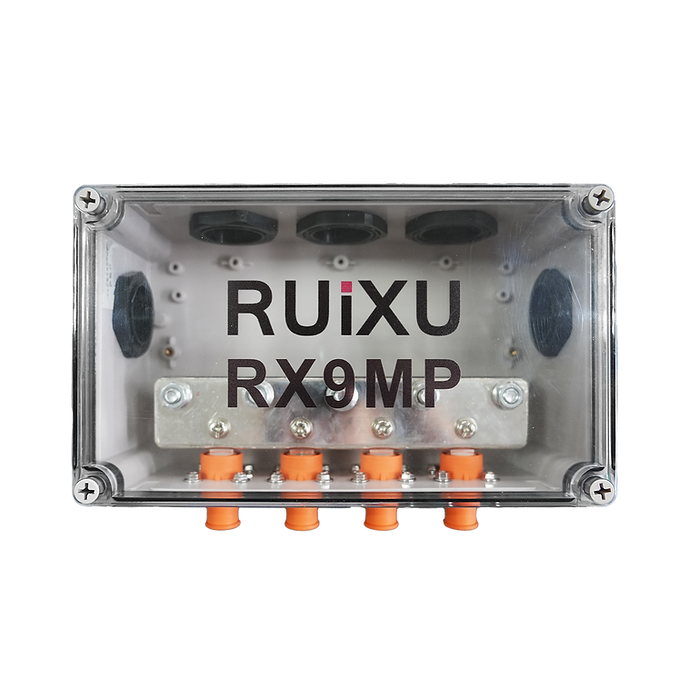

Simplify and secure your high-amperage battery connections with the RUiXU RX9MP Busbar Pair. Rated for a heavy-duty 800A, this kit includes one positive (Orange) and one negative (Black) busbar, housed in waterproof junction boxes. Featuring both standard 5/16" studs and innovative pluggable connectors, these busbars are specifically designed to make installations with RUiXU Lithi2-16 batteries faster, cleaner, and more reliable.
Key Features & Benefits:
- 800A Heavy-Duty Rating: Built to handle demanding, high-power energy systems.

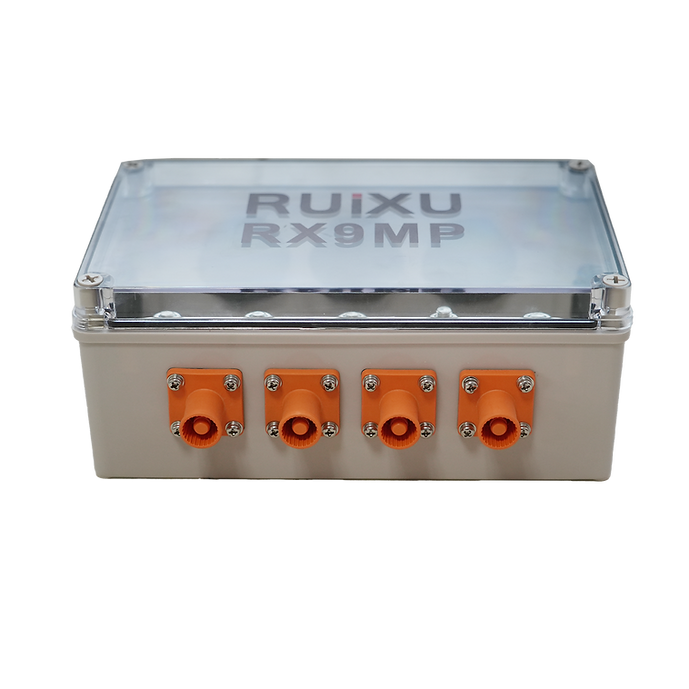

- Dual Connection Options: Features 5 x 5/16" (M8) stainless steel studs for standard lugs and 4 x Pluggable Battery Pole Connectors for quick-connecting RUiXU Lithi2-16 batteries.
- Premium Materials: Solid copper nickel-plated busbar plate ensures maximum conductivity and corrosion resistance.
- Waterproof Junction Box: Each busbar comes in a durable box with waterproof rings to seal connections, making your wiring secure and reliable.
- Complete Pair: Includes one Orange (Positive) and one Black (Negative) busbar assembly, plus mounting screws for wall installation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | RUiXU RX9MP 800A Busbar (Pair) |
| SKU | RX9MP-BUSBAR-PAIR |
| Manufacturer | RUiXU |
| Rating | 800A |
| Includes | 1x Orange (Positive) Busbar, 1x Black (Negative) Busbar |
| Terminals (per busbar) | 5 x 5/16" (M8) Studs, 4 x Pluggable Battery Pole Connectors |
| Compatibility | RUiXU Lithi2-16 Batteries |

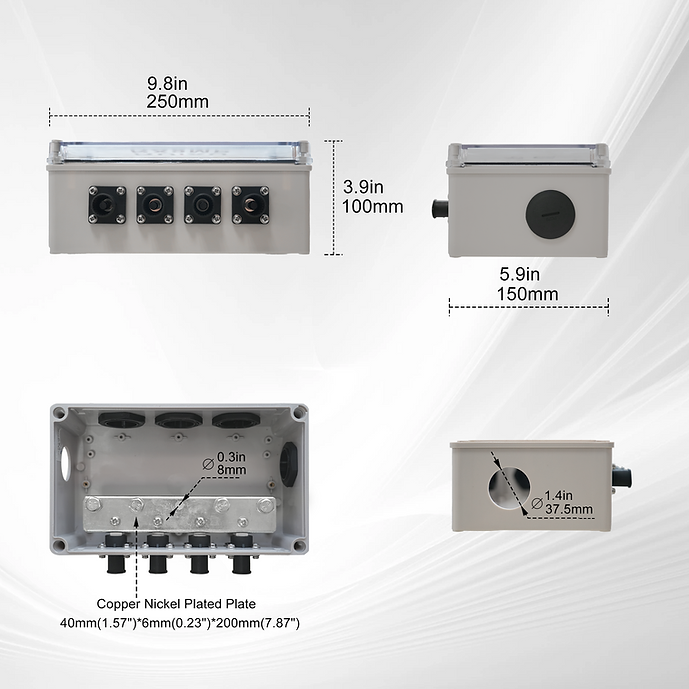

| Box Dimensions (L x W x H) | 250mm x 150mm x 100mm (9.84" x 5.9" x 3.93") |
| Busbar Plate (L x W x H) | 200mm x 40mm x 6mm (7.87" x 1.57" x 0.23") |
| Materials | Copper Nickel Plated Plate, Stainless Steel Studs |
| Features | Waterproof Junction Box, Wall Mount Screws |
The fast and reliable connection for your RUiXU power system.
