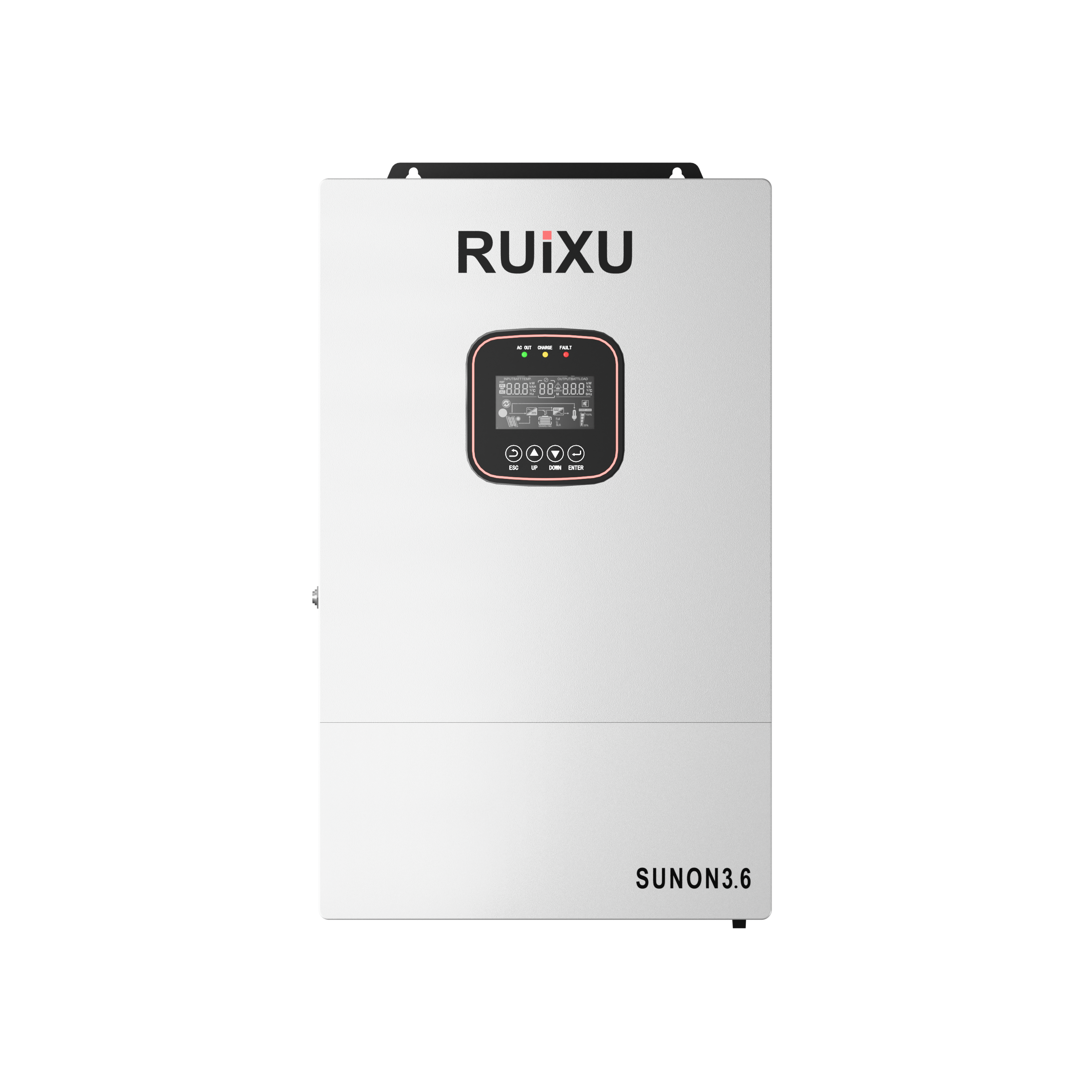

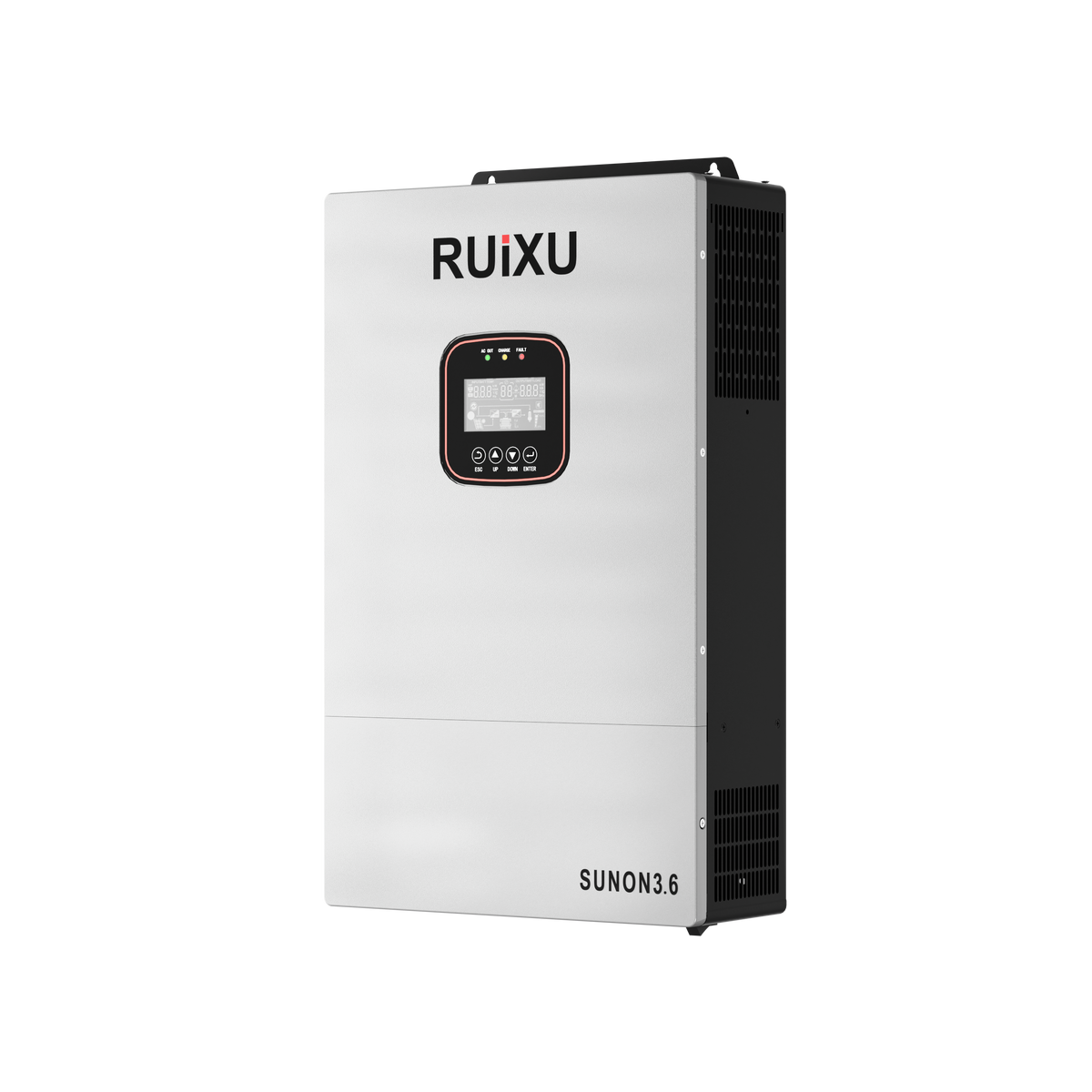

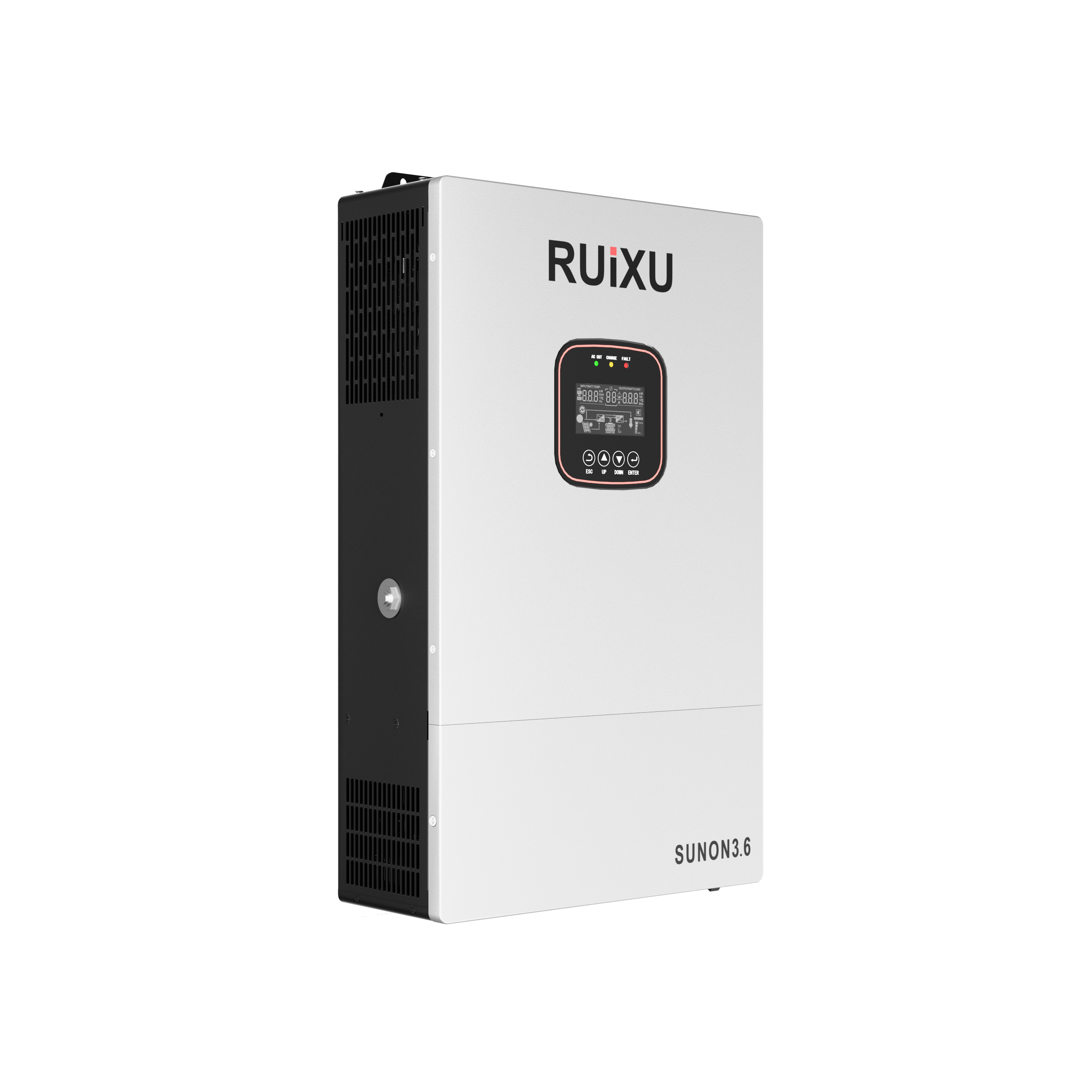

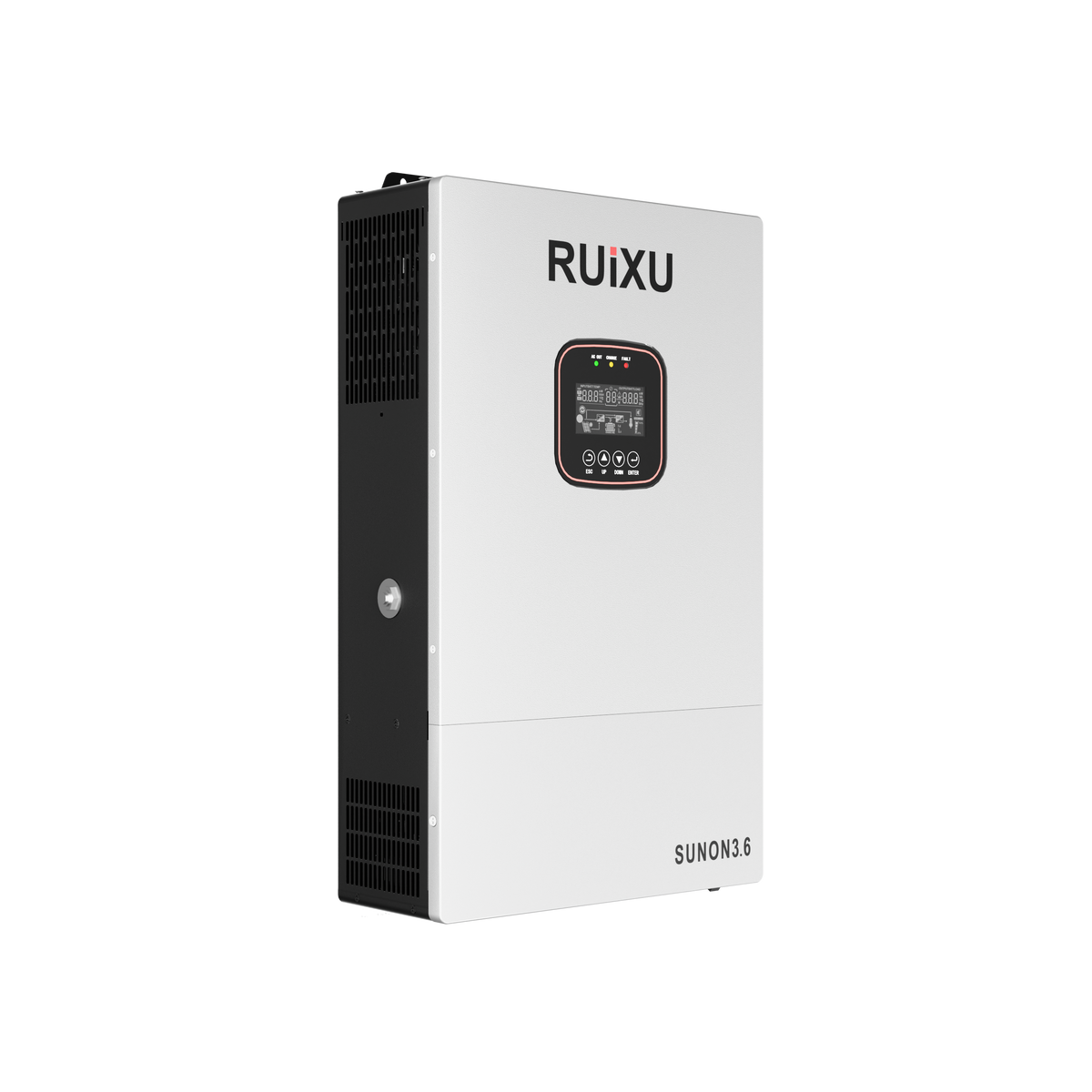

RUiXU SUNON3.6 Single-Phase Off-Grid Inverter
RUiXU SUNON3.6 Single-Phase Off-Grid Inverter
Couldn't load pickup availability
The All-in-One Off-Grid Standard.
3.6kW UL1741 Certified Solar Inverter
Upgrade your off-grid energy system with the RUiXU SUNON3.6. This next-generation 3.6kW inverter is more than just a power source—it is a fully integrated energy management system. Combining a high-voltage MPPT solar charger, a powerful AC battery charger, and a pure sine wave inverter, the SUNON3.6 delivers industrial-grade performance in a compact, wall-mountable chassis.
Engineered for flexibility, the SUNON3.6 features a massive 4,500W PV input capacity with a high-voltage input range (up to 300Vdc), allowing for longer, more efficient solar string runs. Uniquely, this unit can operate without a battery, powering loads directly from solar and the grid simultaneously—perfect for cabins or backup systems where battery expansion is planned for a later date.
Key Features
- Batteryless Operation: Can power loads directly from solar and utility grid simultaneously without a connected battery bank.
- High-Voltage PV Input: Supports up to 300Vdc open circuit voltage and 4,500W of solar input, reducing wiring costs and simplifying installation.
- Massive Scalability: Parallel up to 6 units (21.6kW total). Supports Single Phase (120V), Split Phase (120/240V - requires 2+ units), and Three Phase (120/208V - requires 3+ units) configurations.
- UL1741 Certified: Meets rigorous safety standards for grid-interactive equipment, ensuring safe operation and easier permitting.
- Generator Auto-Start: Integrated dry contact port sends a signal to start compatible backup generators when battery voltage is low.
- Universal Compatibility: Works seamlessly with RUiXU Lithium batteries (direct communication), as well as Lead-Acid, Gel, and other user-defined 48V battery banks.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 3,600 W |
| Max. Surge Power | 7,200 VA |
| Nominal Output Voltage | 120 Vac (Pure Sine Wave) |
| Motor Start Capability | 2 HP |
| Battery System Voltage | 48 Vdc (Range: 40-60 Vdc) |
| Max Solar Charging Current | 80 A |
| Max AC Charging Current | 40 A |
| Max PV Input Power | 4,500 W |
| Max PV Open Circuit Voltage | 300 Vdc |
| MPPT Voltage Range | 90 - 260 Vdc |

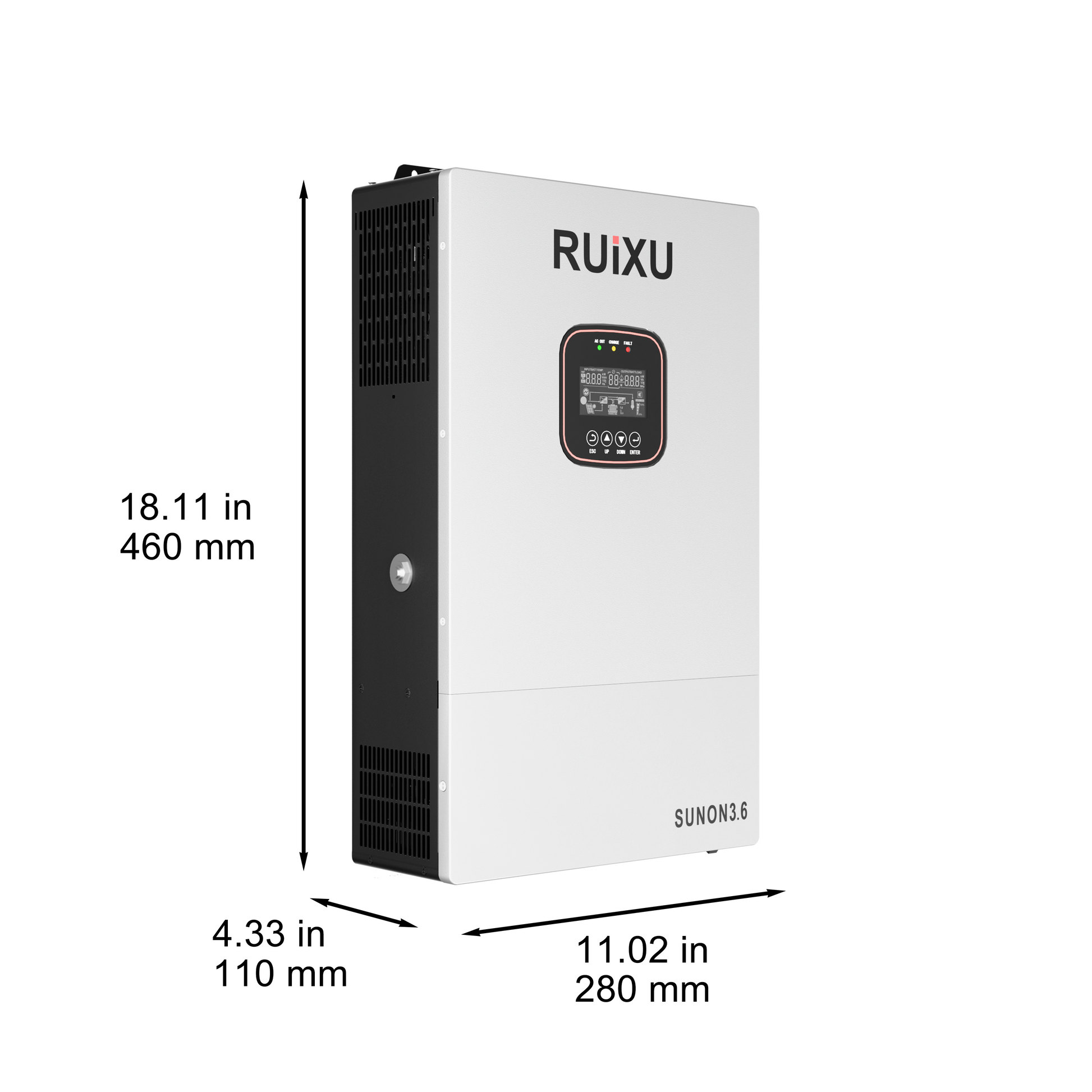

| Dimensions (LxWxD) | 16.85" x 12.99" x 4.33" |
| Weight | 17.86 lb (8.1 kg) |
| Certifications | UL1741, FCC Part 15 Class B |
| Warranty | 3 Years |
What's Included
| Item | Quantity |
|---|---|
| RUiXU SUNON3.6 3.6kW Inverter | 1 |
| WiFi Monitoring Dongle | 1 |
| BMS Communication Cable (CAT6) | 1 |
| Parallel Communication & Current Sharing Cables | 1 Set |
| Operation Manual | 1 |
⚠️ System Design Notes
To ensure a professional and safe installation, please review the following requirements:
- This unit is for 48V battery systems. It will not operate with 12V or 24V banks.
- For 240V loads (well pumps, dryers, electric stoves), a minimum of two SUNON3.6 units must be installed in parallel and configured for split-phase operation.
- This inverter is IP20 rated and must be installed in a clean, dry, indoor environment.
- Native BMS communication is supported for RUiXU, Pylontech, and other major battery brands via RS485/CAN.
Harness the sun. Manage your power. Live independently.
The RUiXU SUNON3.6 puts you in control.
