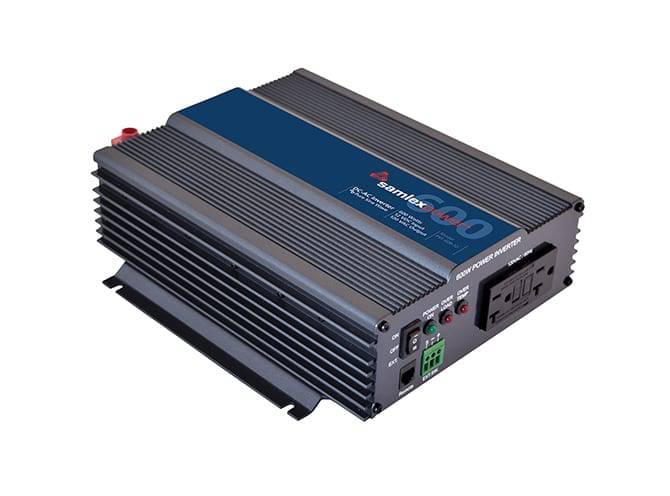

Samlex PST-600-12

600 Watt Pure Sine Wave Inverter

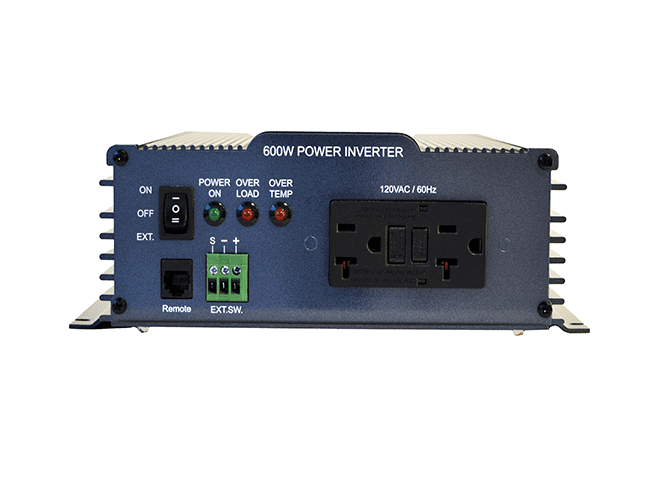

This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

3 Year Limited Warranty

Features

• High efficiency
• Temperature controlled cooling fan – reduces energy consumption
• Low interference Wide operating DC input range: 10.7 – 16.5 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-15A
• Safety certified to UL standards, FCC compliant
• Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch

Specifications

• Input: 12 VDC
• Output: 120 VAC
• Watts: 600 Watts
• Surge: 1000 Watts
• Remote Control: RC-15A (sold separately)
• Weight: 5.9 (lbs)
• Weight: 2.7 (kg)
• Dimensions: 9.37 x 10.87 x 3.23 (in)
• Dimensions: 238 x 276.2 x 82 (mm)
• Safety: ETL to UL Standard

Applications

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

Downloads

• Owner’s Manual
• Specifications

600W 12V PST Pure Sine Inverter
