Samlex 12V 50A SEC Battery Charger
Samlex 12V 50A SEC Battery Charger
Couldn't load pickup availability

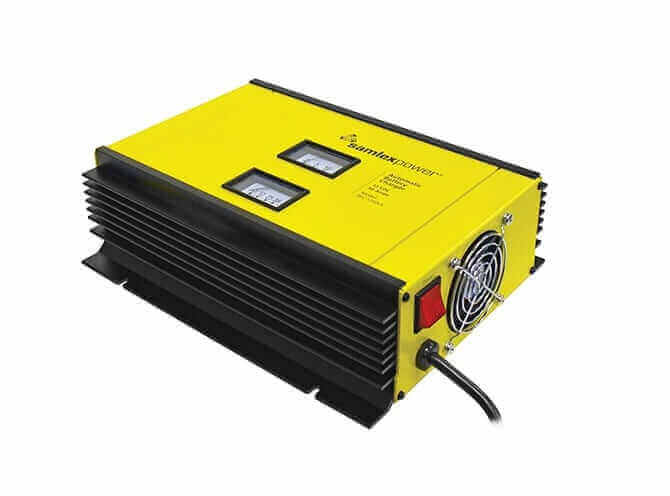

Samlex SEC-1250UL
12 Volt, 50 Amp Battery Charger. Safety Listed.
This advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries. “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries. The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.
2 Year Limited Warranty
Features
- Switch mode technology for high efficiency, lightweight and quiet operation
- Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
- Can charge 2 banks of batteries simultaneously, no isolator necessary
- Can be used as a power supply or DC UPS when used in conjunction with a battery
- User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
- User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
- “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
- Voltmeter and Ammeter for monitoring
- Fan cooled based on output current
- Protections: Short circuit, overload, reverse battery connection and over temperature
- Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
Specifications
- Input: 120 VAC 50/60 Hz (default) or 230 VAC 50/60 Hz (by internal jumper setting)
- Output: 12 VDC
- Amps: 50
- Remote Control: 900-RC
- Weight: 9.0 (lbs)
- Weight: 4.1 (kg)
- Dimensions: 13.03 x 9.60 x 3.82 (in)
- Dimensions: 331 x 244 x 97 (mm)
- Safety: Intertek-ETL listed: Conforms to ANSI/UL Standard 1564 ; Certified to CAN/CSA STD. C22.2 No. 107.2
Applications
- Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
Downloads
