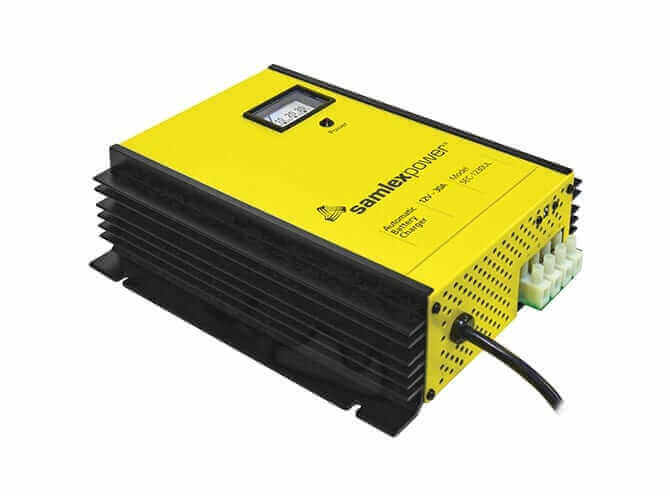

Samlex 12V 30A SEC Battery Charger
Samlex 12V 30A SEC Battery Charger
Couldn't load pickup availability
Samlex SEC-1230UL
12 Volt, 30 Amp Battery Charger. Safety listed.
This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting) AC source. User selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries. The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.
2 Year Limited Warranty
Features
- High efficiency & lightweight
- Commercial Grade
- Quiet operation
- Industry-proven design trusted by professionals for over 30 years
- Automatic operation for ALL Lead Acid Batteries: Flooded, AGM or Gel Cell
- User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries
- 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting)
- Voltage meter display – Ammeter and LED power status
- For all types of Lead Acid batteries
- Charge with a battery load or stand alone
- Use as a power supply or DC UPS
- UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
- Charge 3 banks of batteries at once – no isolator necessary
Specifications
- Input: 120 VAC, 50/60 Hz (default) or 230 VAC 50/60 Hz (internal jumper setting)
- Output: 12 VDC
- Amps: 30 Amps
- Weight: 6.4 (lbs)
- Weight: 2.9 (kg)
- Dimensions: 11.0 x 8.4 x 3.3 (in)
- Dimensions: 28.0 x 21.4 x 8.3 (cm)
- Safety: Intertek-ETL Listed: Conforms to ANSI/UL Standard 1564 ; Certified to CAN/CSA STD. C22.2 No. 107.2
Applications
- Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
Downloads
12V 30A SEC Battery Charger
